From coin-cell IoT tags to live-person wearables and mmWave base stations—pick the chamber that matches your footprint, frequency and power, then verify RF performance in minutes.
Perfect for small devices (WLAN, Bluetooth, IoT), offering a 40×30×30 cm test volume. Delivers repeatable multipath validation in ISM bands (2.4–7 GHz) with minimal footprint.
Compact, capable, 5G-ready. RTS65 delivers a 50×50×50 cm test zone, 650 MHz–12 GHz baseline with a 50 GHz upgrade path, and up to 16 ports to streamline complex testing.
Designed for testing base stations, with a maximum TRP (not EIRP) of 53 dBm. A pole mount is available for the heavy duty turn table, allowing easy mounting of base stations of up to 100 kg. Frequencies from 400 MHz up to 67 GHz can be tested.

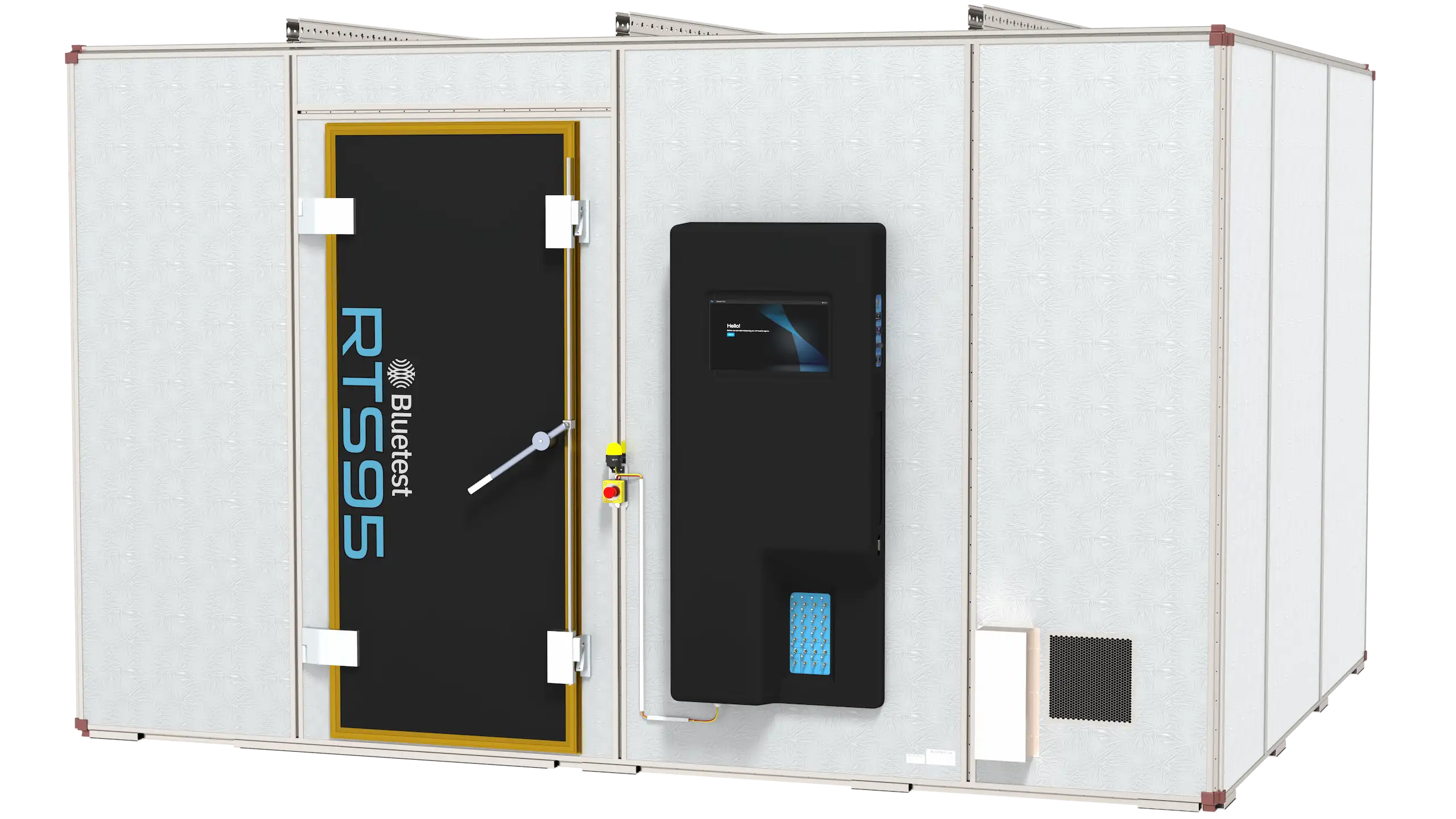

The chamber for testing large devices or performing live-person testing. Heavy-duty turn table for up to 500 kg, with a test volume of 1.5 x 1.5 x 2 m. The RTS85 offers a slightly smaller footprint and options to test up to 67 GHz, while the RTS95B has a wider door at 1.4 m to enable easy loading of large test objects, like connected appliances and large screen TVs.
Not sure which Reverberation Test Station (RTS) that fits your device? The table below puts the essentials—volume, bands, and typical workloads—side by side.
RTS25
RTS65
RTS95B
RTS85HP
Product overview
Maximum DUT size
40 x 30 x 30 cm
50 x 50 x 50 cm
1.5 x 1.5 x 2 m
1.2 x 1.2 x 1.5 m
Maximum DUT weight
12 kg
20 kg
150 kg 200 kg option available
150 kg 100 kg on pole mount
Antenna Ports
4 or 8 N-type
4-16 SMA + 2 mmWave
4-16 SMA
1 SMA +1 mmWave
Frequency Range
2.4-7.125 GHz
650 MHz - 12 GHz*50 GHz with mmWave
400 MHz - 12 GHz
450 MHz - 67 GHz
Key Use-Cases
Wi-Fi, Bluetooth
Mobile phones, head and hand phantom tests, IoT devices
