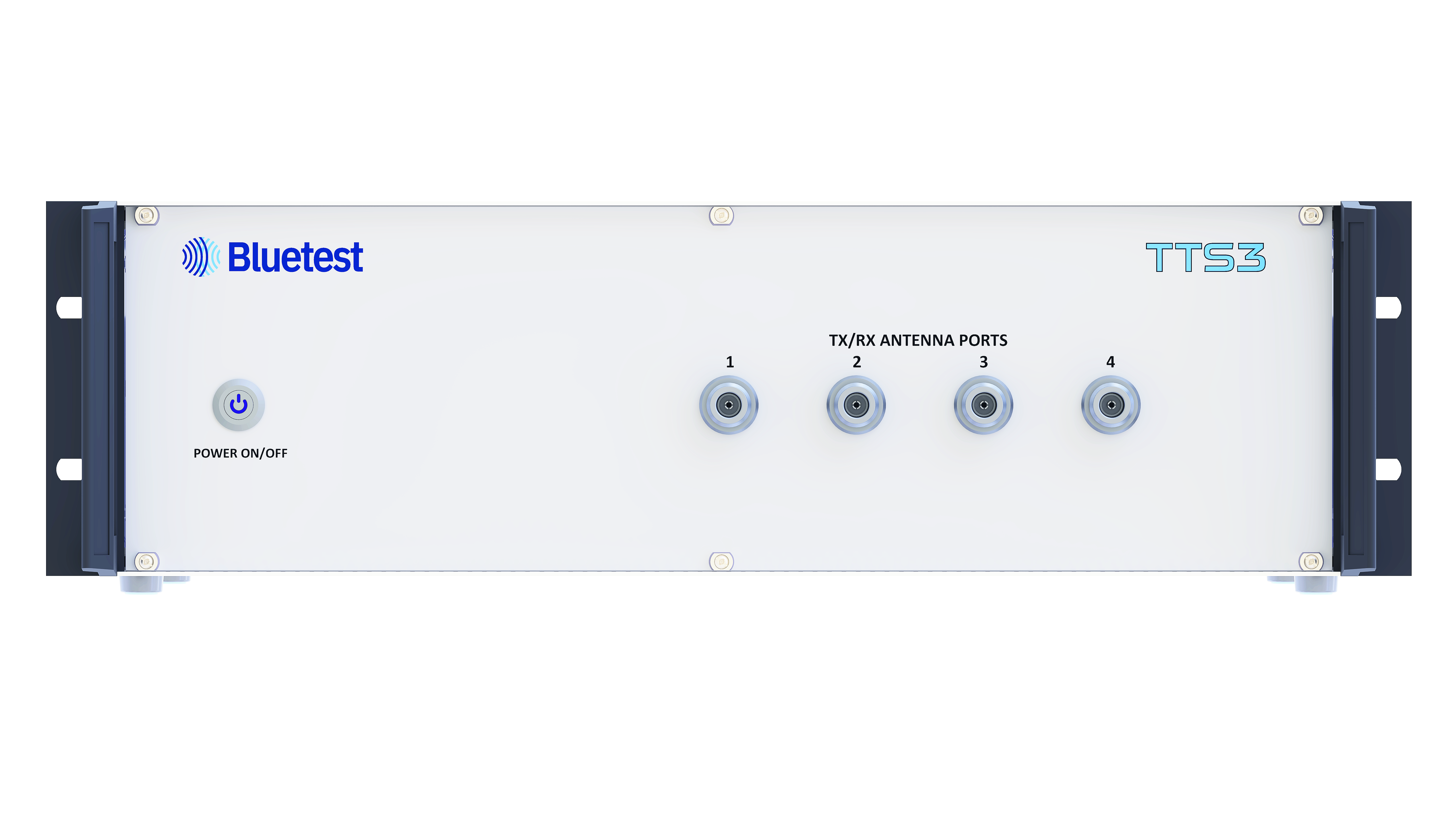

TTS3 Throughput Test System

The TTS3 is a tri-band WLAN reference radio that can be set to both access point mode and WLAN client (station) mode. It enables UDP and TCP/IP data throughput measurements in both uplink and downlink direction. The WLAN radio supports 802.11be (Wi-Fi 7) on the 2.4, 5 and 6 GHz bands, with 4x4 MIMO, as well as all the legacy WLAN standards (802.11a/b/g/n/ac/ax).

Settings include parameters such as WLAN standard, region, SSID, channel number, and fixed  MCS index or adaptive MCS index. The power is calibrated, making it possible to  conduct throughput measurements vs received power (rather than vs path loss), as well as  comparing results between Bluetest test systems in different locations.

Complete your OTA measurements with the Throughput Test System TTS3.  All our reverberation chambers are compatible with TTS3.  The complete system enables MIMO OTA data throughput measurements  on WLAN clients and access points.

‍
