RTS95B
RTS95B is a spacious reverberation test system for large form factor devices, supporting testing of items like TV screens, smart home appliances, large M2M devices, and automotive subsystems—plus wearable testing on a live person in a large measurement space. It also supports low-frequency measurements down to 400 MHz.
EMEA
Americas
Sweden
Asia Pacific
Improve the Wireless Connectivity of Large Form Factor Devices

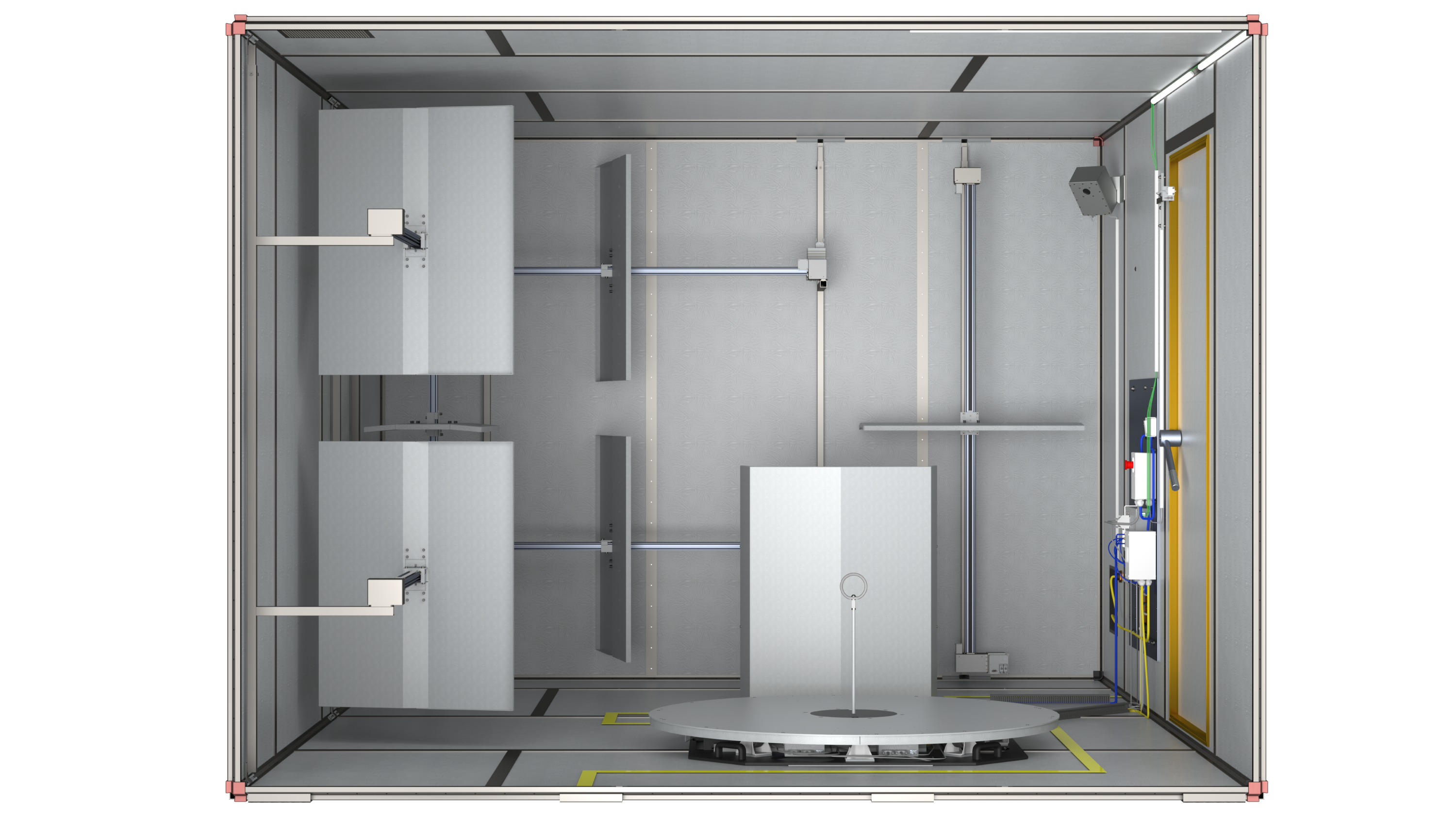

RTS95B is a spacious reverberation chamber for large form factor objects like TV screens, smart home appliances, large M2M devices, and automotive subsystems. By default, it is delivered with a turntable (1.2 m) that supports up to 150 kg, with an optional heavy-duty turntable upgrade (1.5 m) for devices up to 500 kg, increasing the range of DUTs that can be tested.
The chamber is CTIA Approved for Large Form Factor Devices. In CTIA’s OTA test plan, the reverberation chamber is included as the only measurement methodology for wireless large form factor devices, defined as larger than notebook-size (one dimension > 42 cm). This positions RTS95B as suitable to meet CTIA test plan requirements.

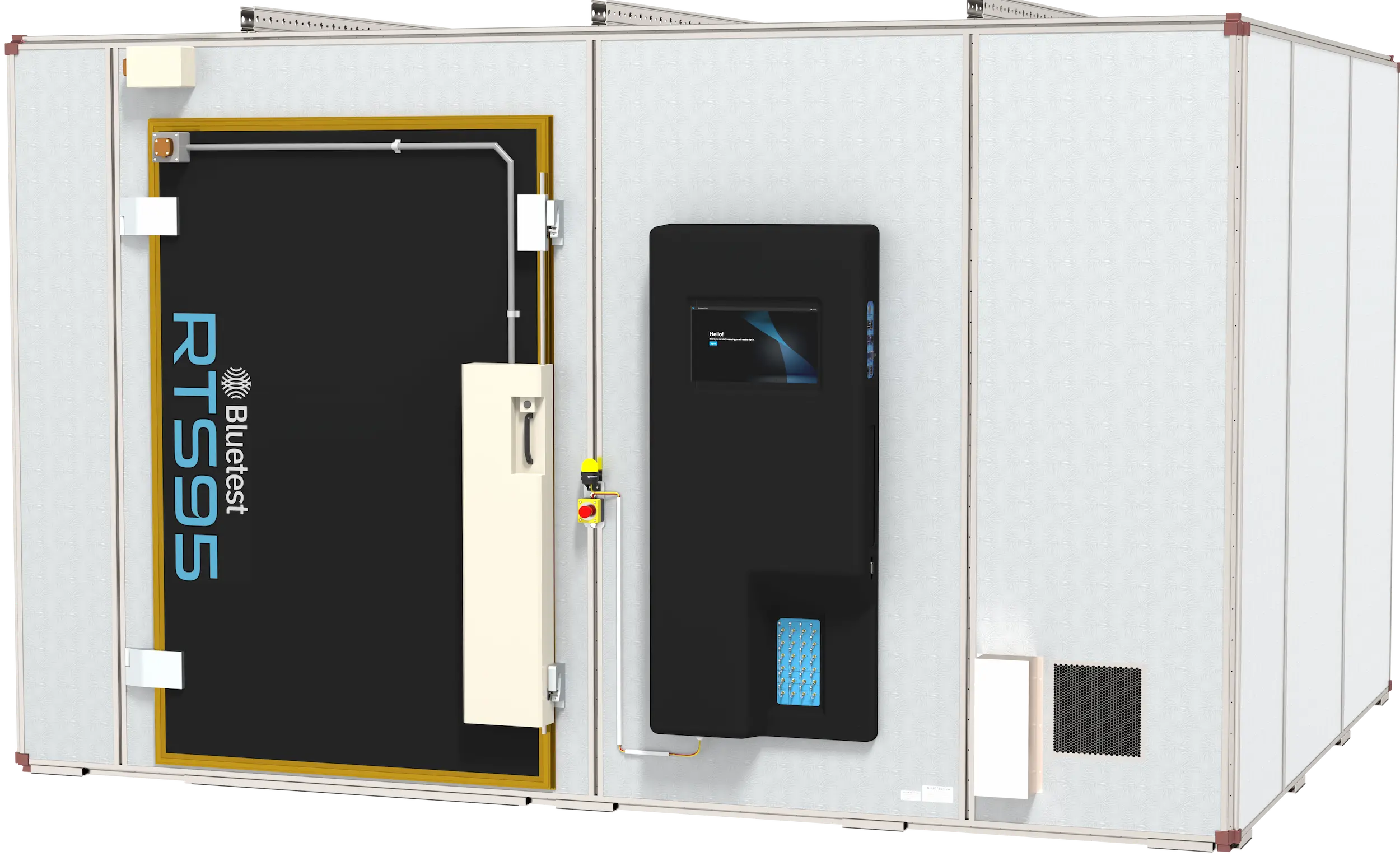

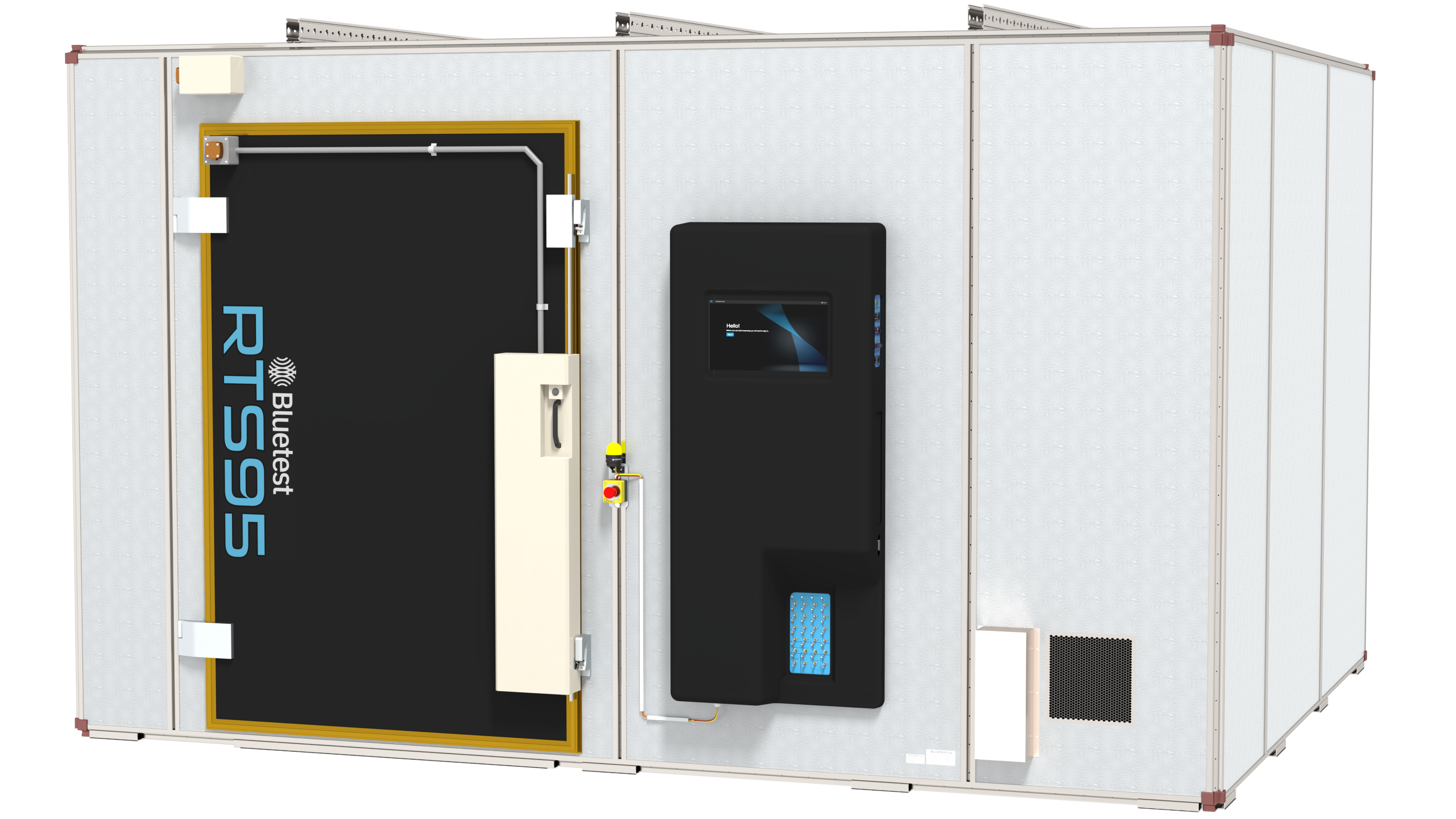

Customers value the large measurement space for washing machines and large smart TVs. An optional 1.4 m wide door is available, making loading of large devices even easier. Because DUT positioning is flexible, measurements can be performed with a live person walking inside the chamber, using a handheld device or body-worn antennas.
“Bluetest's solution is unique… pioneer in WiFi IoT testing.” — Wang Y.J., CEO, RFsister
The RTS95 measurement volume is 2 m × 2 m × 2 m, supporting wearables and body-worn antenna testing on a live person or a phantom, letting engineers observe effects of handling, different bodies, and mounting. Thanks to its physical size, RTS95 enables accurate testing down to 400 MHz, suitable for terrestrial TV, military/security/emergency comms, and 450 MHz cellular antenna applications.
Test Zone / Max DUT Size (W×D×H)
1.5 m × 1.5 m × 2 m
Frequency Range
400 MHz – 12 GHz (43.5 GHz w. 5G option)
Shielding Isolation
>100 dB (Typ. >80 dB @ 6–43.5 GHz)
Antenna Ports
400 MHz – 12 GHz: 4 / 8 / 16; 6–43.5 GHz: up to 2
Power Consumption
Typical 160–220 W
External Dimensions (L×H×D)
4240 × 2615 × 3500 mm
Chamber Weight
Approx. 1750 kg
Max Device (DUT) Weight
Up to 500 kg (with optional 1.5 m turntable)
CTIA-Driven Large Form Factor OTA Testing
RTS95B is positioned to fulfill CTIA OTA test-plan requirements for large form factor devices (defined as one dimension larger than 42 cm). It supports large DUTs and real-world measurement flexibility where DUT positioning is not critical—useful for applications like washing machines and large smart TVs, and even scenarios involving a live person walking inside the chamber with handheld or body-worn antennas.
Wearables and Low-Frequency Measurements Down to 400 MHz
RTS95 supports a 2 m × 2 m × 2 m measurement space suitable for wearable devices and body-worn antennas mounted on a live person or dummy—helping engineers evaluate how handling, body type, and antenna placement impact RF performance. Its physical dimensions also support accurate measurements down to 400 MHz, covering applications such as terrestrial TV, military/security/emergency communication, and 450 MHz cellular systems.
